SNOVA-TP FLEXO PRINTER SLOTTER ROTARY DIE-CUTTER
SNOVA-TP FLEXO PRINTER SLOTTER ROTARY DIE-CUTTER
  • Technical parameters
  • Product description
  • Download
  • Inquiry
  • Video

SNOVA-TP技(jì )术参数


Features:






◆  Integrated CNC control system, troubleshooting, production

     management, remote maintenance.



◆  Quick printing plate mounting, motorized phase zero.



◆  Powerful dust remover, with anti-static bar, centralized dust

     collection, less ECT loss.



◆  High precious transfer structure with ceramics vacuum

     transfer wheel, good registration accuracy.



◆  Choose international brand electric components and

      transfer  bearings, pass CE certification.








Main Console:














◆  Windows base CNC control system



◆  Remote maintenance.



◆  Huge order saving.



◆  Trouble-shooting.



◆  Optimized order memory.



◆  Production and order management.



◆  Available to connect with the customer internal ERP.

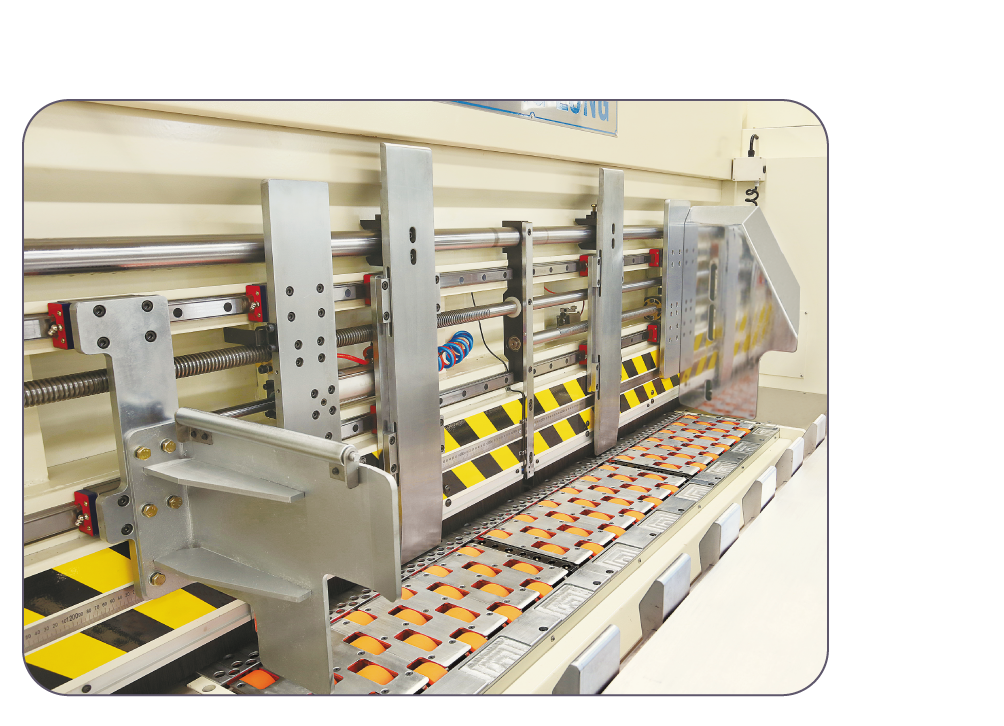

Feeding Unit:






◆  Operation can be controlled by both main console and each

     unit touch screen.


◆  Accurate and low pressure feeding, adjustable air control, precious registration



◆  Precious liner guideway lateral moving



◆  Motorized side squaring and paper support



◆  Powerful dust remover, with anti-static bar, centralized

      dust collection,  less ECT loss

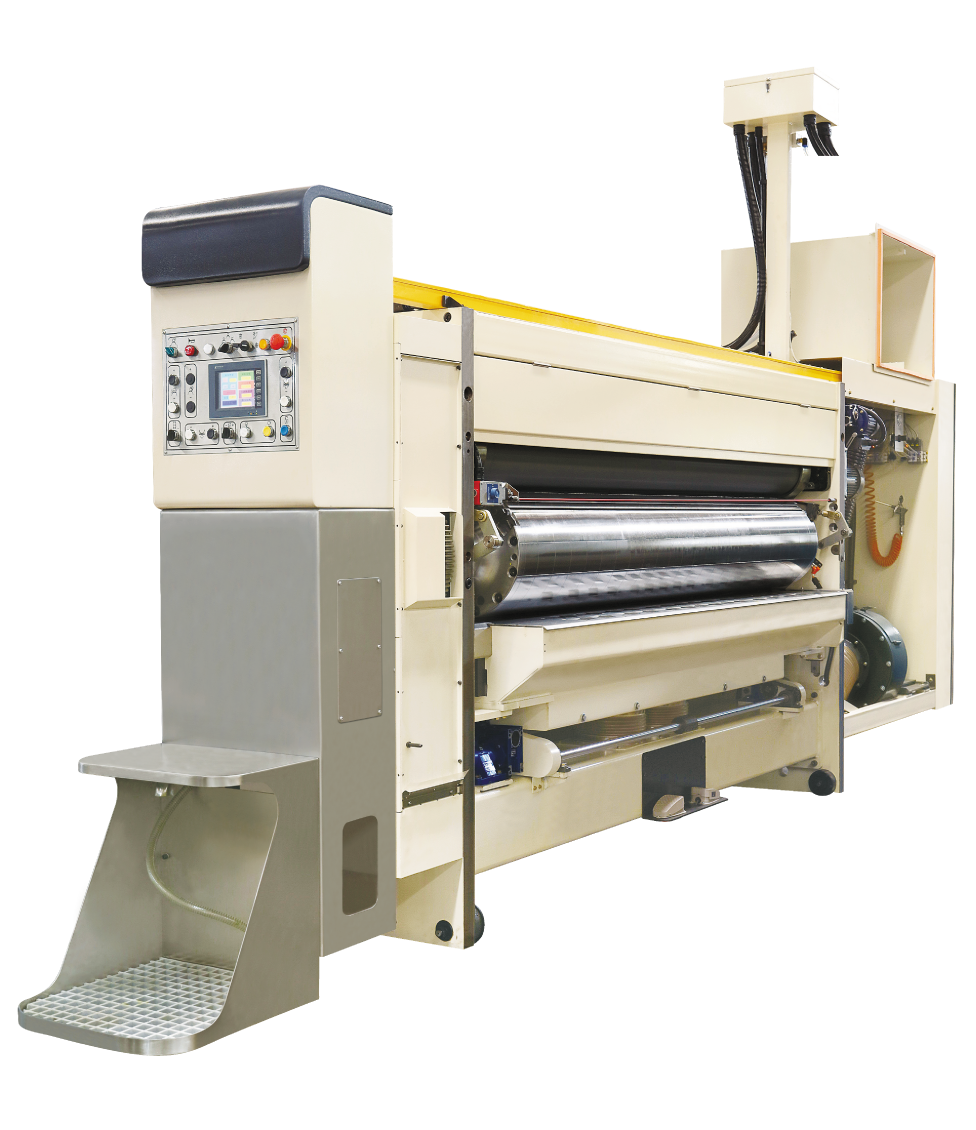

Printing unit:








◆  Operation can be controlled by both main console and

      each  unit touch screen.


◆  Top print, high precious transfer structure with ceramics

       vacuum  transfer wheel, good registration accuracy.



◆  Quick printing plate mounting, motorized phase zero.

◆  Ink saving circulate system, safety ink taking, short ink alarm.



◆  Option: Double doctor blade.

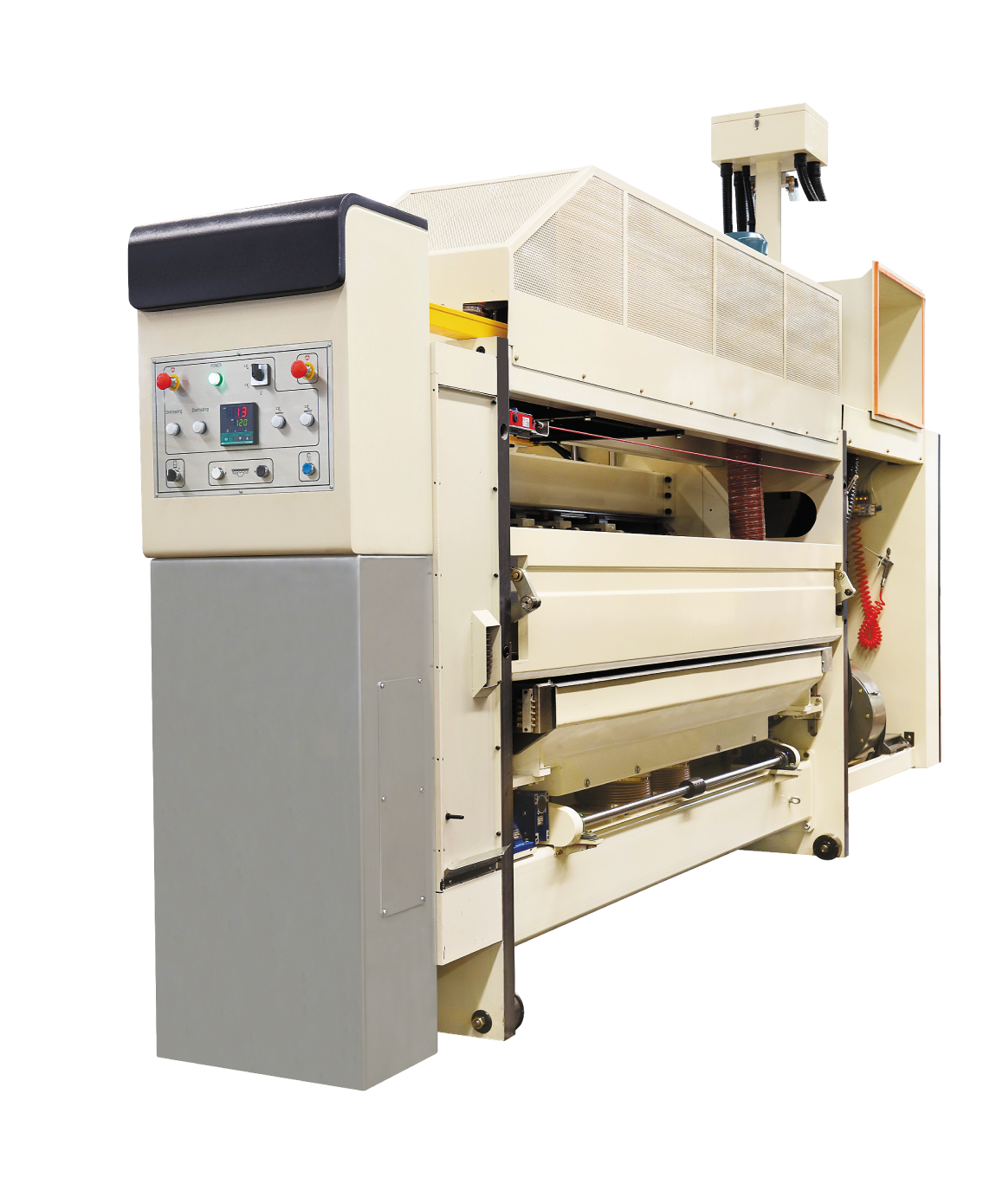

Drying Unit:




◆  Operation can be controlled by both main console

      and each  unit touch screen.


◆  Vacuum transfer, motorized gap adjustment.



◆  Energy saving dry section, hot air circulating,

       settable temperature.


◆  Option: Infrared ray or UV dryers

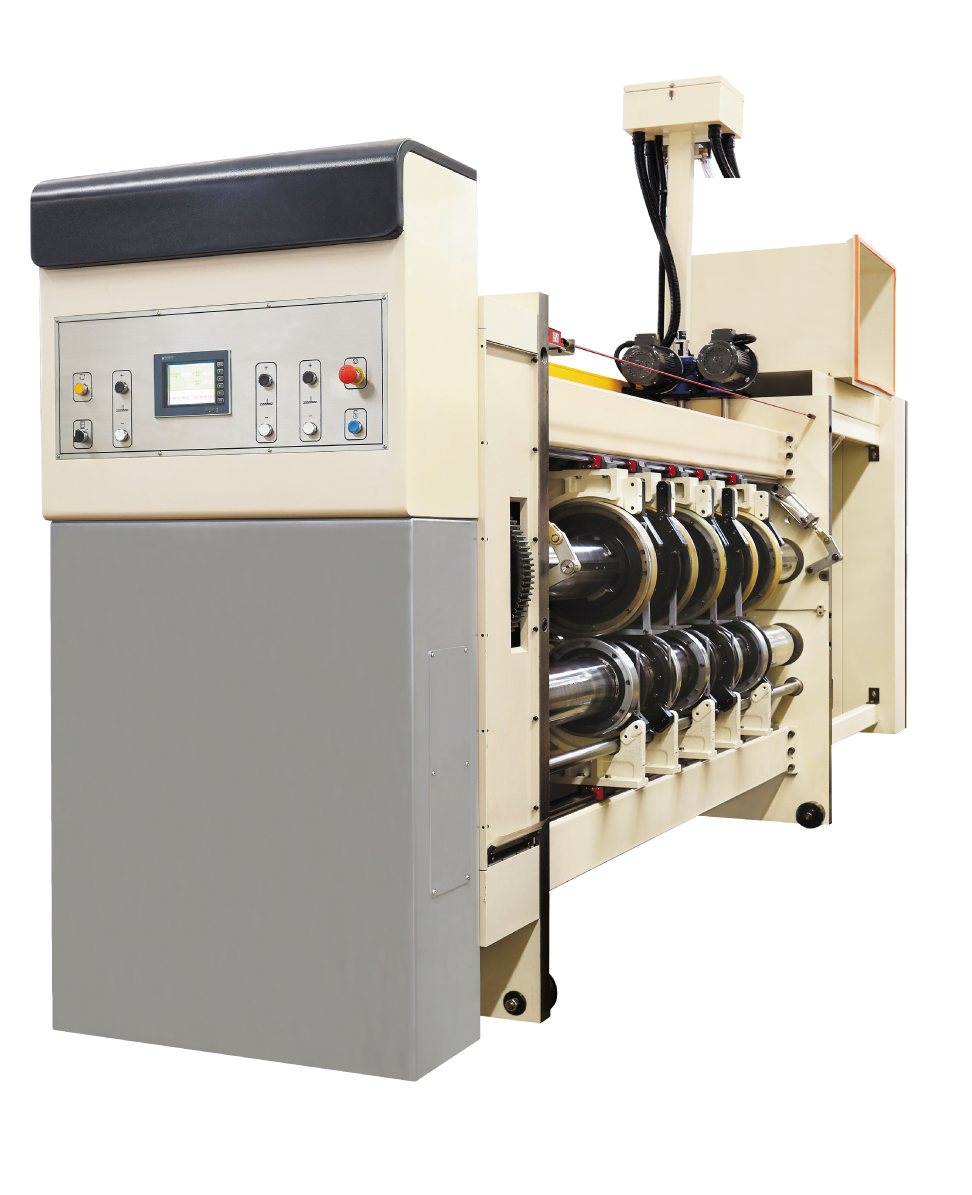

Slotting unit:








◆  Operation can be controlled by both main console and each

     unit touch screen.


◆  Liner guideway lateral moving device with universal cross joints.



◆  Pre-creaser, creaser slotting holder motorized gap control.



◆  Box height motorized control



◆  Large displacement of middle knife.










Die-cutting Unit:









◆  Servo driven control.



◆  Up die-cutting, clean up scrap thoroughly, motorized

      die-cutting  pressure adjustment.



◆  Die-cutting roll pneumatic self-locking device,                                                                               smooth die-cutting.



◆  Sheet guide roll displacement motorized control,

        quick order change.



◆  C.U.E quick change die-cut anvil with grinding mechanism.

      Precious settable speed difference compensation,

      ensure die-cutting accuracy.








Stripping Unit:









◆  Independent stripping unit.



◆  Belt transfer, angle adjustable fan assistant clean up scrap.



◆  Dual vibration roll, speed frequency invert control.



◆  Powerful fan clean up scraps.








Stripping Unit:









◆  Stacker operate automatic or manually



◆  Pneumatic lifting device for receiving arm , tightness degree

     adjustable



◆   Different speed section type stacking,  transfer belt inverter



◆   Stacker platform lifting inverter control, protection device for

      lifting safety



◆   Side square. Pneumatic stacker lifting.






Graphic (NT):

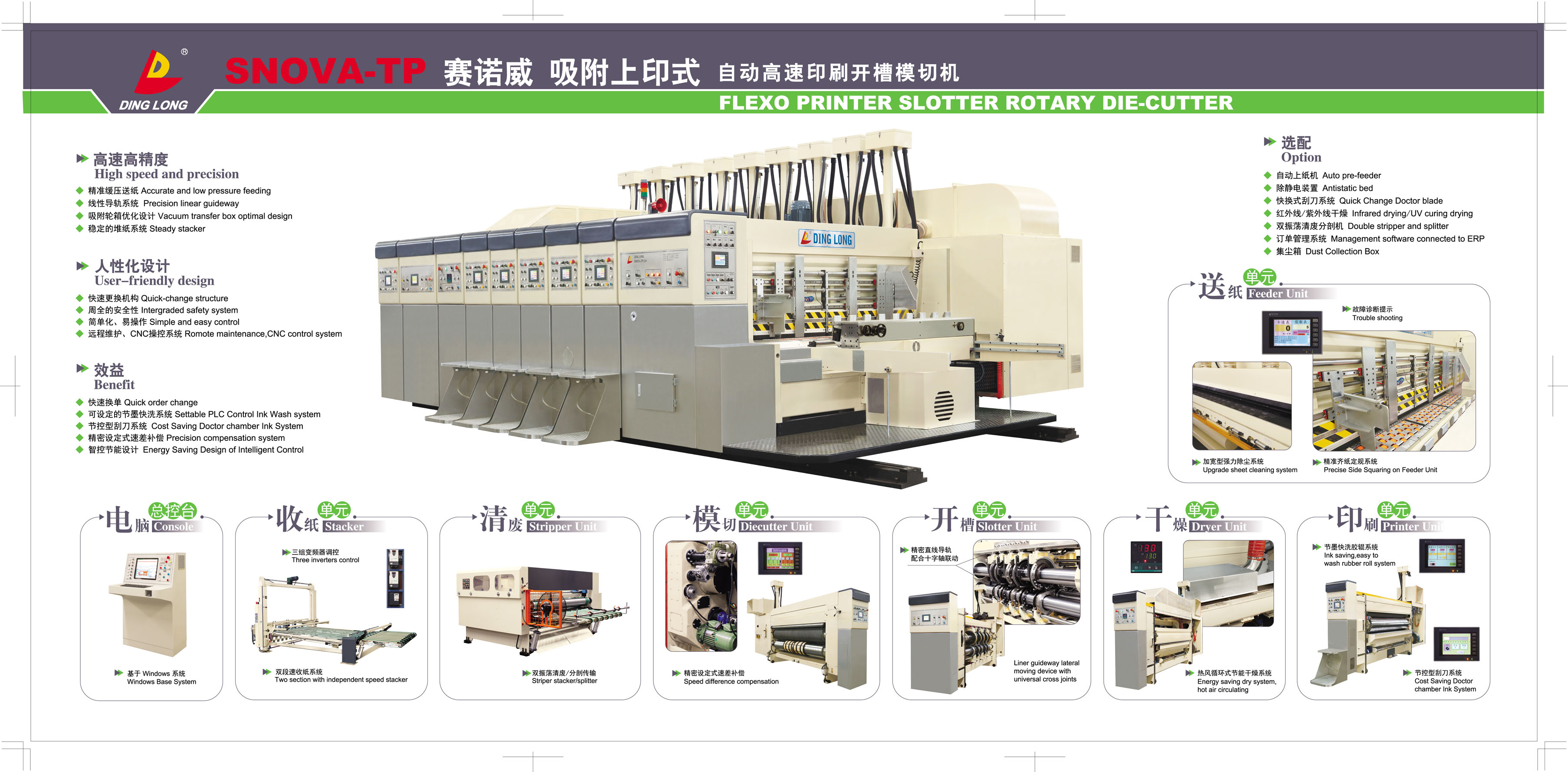

SNOVA-TP Catalog positive online preview1
文(wén)件类型: .jpg b69851373d37a3247f38772723151083.jpg (794.81 KB)

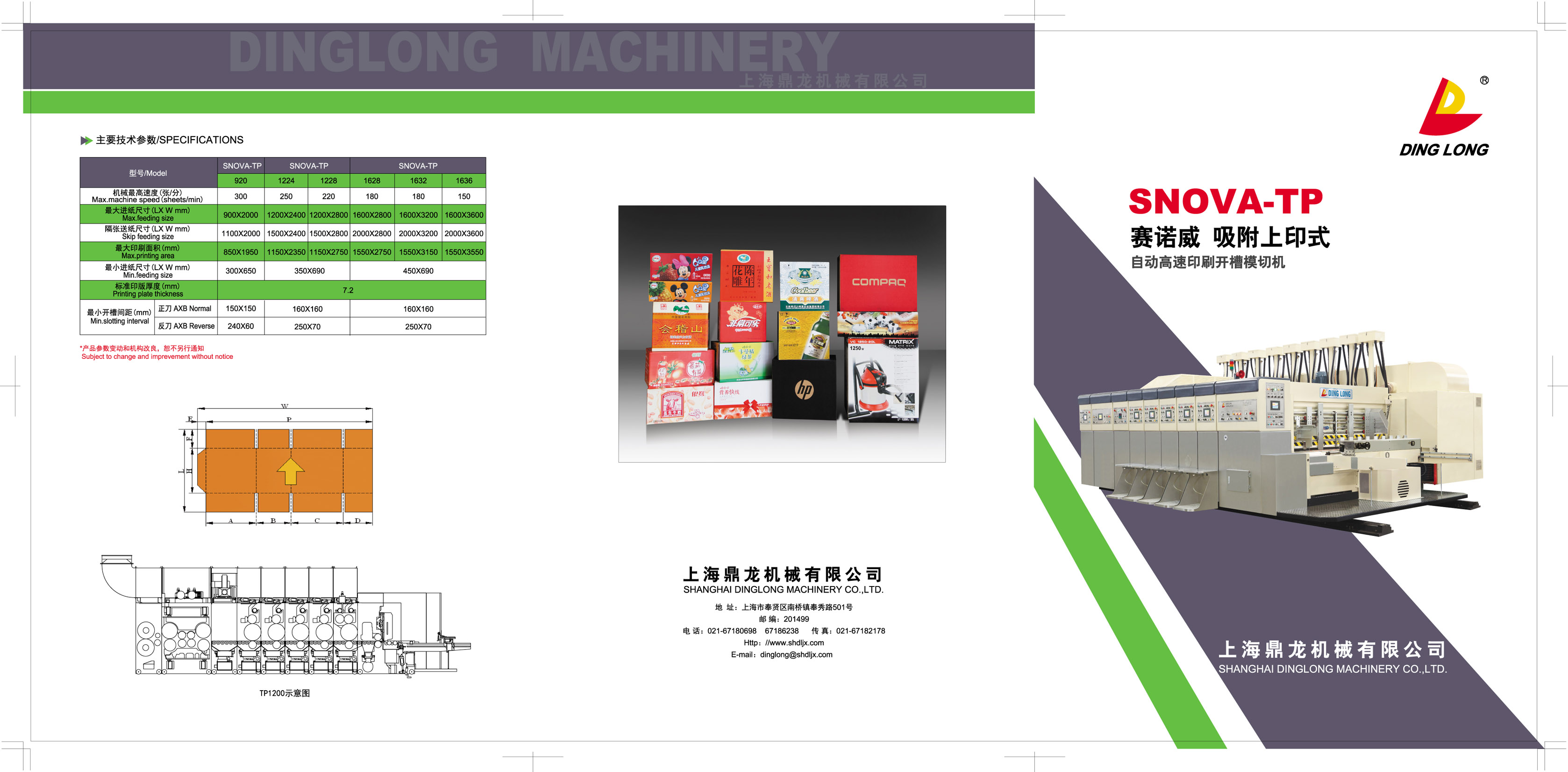

SNOVA-TP Catalog positive online preview2
文(wén)件类型: .jpg 5916b1a11ca04953717b607ad61ffe58.jpg (642.48 KB)
SNOVA-TP Click here to download the product catalog
文(wén)件类型: .zip static/file/文件类型 (1023.24 KB)



 .
