SNOVA-BP-SCS FLEXO PRINTER RDC STRIPPER COUNTER STACKER
SNOVA-BP-SCS FLEXO PRINTER RDC STRIPPER COUNTER STACKER
  • Technical parameters
  • Product description
  • Download
  • Inquiry
  • Video

SNOVA-BP-SCS技(jì )术参数




Features:








◆  Aim to box style 0401 (Auto packing box), a mould with multiply,

     high efficiency and productivity, labor saving, less process,

     less space.


◆  Up die-cutting, dual vibrated roll, stripping, Splitting, counting,

     stacking.


◆  Integrated CNC control system, troubleshooting, production

     management,  remote maintenance.



◆  Quick printing plate mounting, motorized phase zero.



◆  Powerful dust remover, with anti-static bar, centralized

      dust  collection, less ECT loss.


◆  High precious transfer structure with ceramics vacuum

     transfer wheel,  good registration accuracy.


◆  Choose international brand electric components and

       transfer bearings, pass CE certification.






Main Console:














◆  Windows base CNC control system

◆  Remote maintenance

◆  Huge order saving

◆  Troubleshooting

◆  Optimized order memory

◆  Production and order management



◆  Available to connect with the customer internal ERP






Feeding Unit:






◆  Operation can be controlled by both main console and

       each unit touch screen.



◆  Lead-edge feeding, adjustable air control,

      precious registration



◆  Precious liner guideway lateral moving


◆  Motorized side squaring and paper support


◆  Powerful dust remover, with anti-static device,

      centralized dust  collection, less ECT loss.






Printing unit:






◆  Operation can be controlled by both main console

       and each  unit touch screen.



◆  Bottom print, high precious transfer structure with

        ceramics vacuum transfer wheel, good registration

      accuracy.


◆  Quick printing plate mounting, motorized phase zero.

◆  Ink saving circulate system, safety ink taking,

      ink short alarm.

◆  Option: Double doctor blade system.







Drying Unit:




◆  Vacuum transfer, motorized gap adjustment.

◆  Energy saving dry section, hot air circulating,

     settable temperature.

◆  Option: Infrared ray or UV dryers






Die-cutting Unit :








◆  Up die-cutting, clean up scrap thoroughly, motorized die-cutting

      pressure adjustment.


◆  Die-cutting roll pneumatic self-locking device, smooth die-cutting.
◆  Sheet guide roll displacement motorized control, quick order change.

◆  C.U.E quick change die-cut anvil with mirco-grinding mechanism.

◆  Precious settable speed difference compensation, ensure

     die-cutting accuracy.










Stripping Unit :









◆  Independent stripping unit.

◆  Belt transfer, angle adjustable fan assistant clean upscrap.

◆  Dual vibration roll, speed frequency invert control.

◆  Powerful fan clean up scraps.











Counting Unit :









◆  Speed difference counting splitting.

◆  Front Vacuum belt transfer, powerful fan clean up scraps.

◆  Pneumatic control, splitting transfer, photoelectric

     sensor detective.

◆  PLC control, belt speed adjusted by frequency invert.











Stacking Unit :









◆  PLC control, belt speed adjusted by frequency invert.

◆  Servo driven control, scale stacking.

◆  Motorized lifting folk lever.











Graphic(BP-SCS1628) :

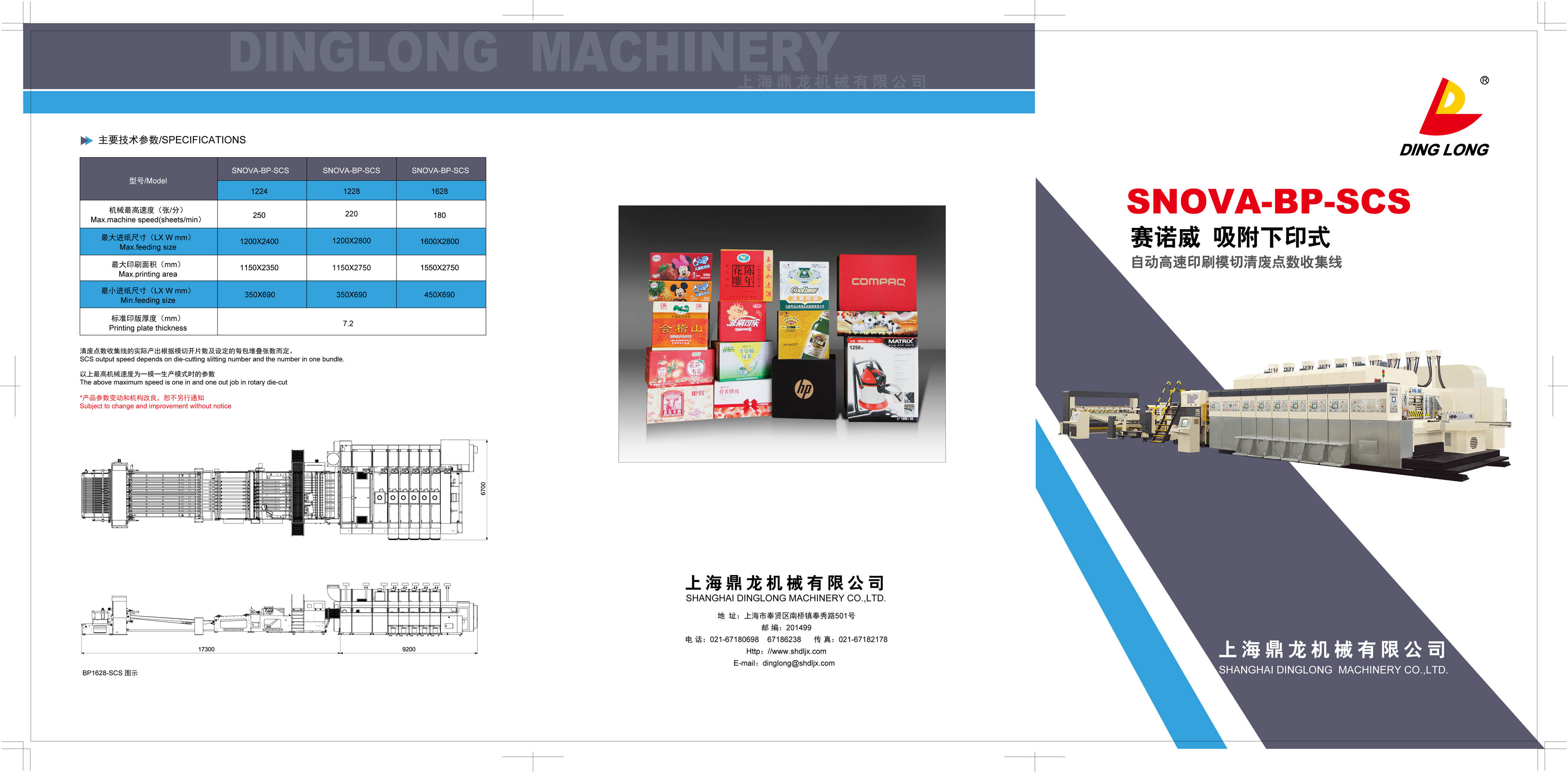

SNOVA-BP-SCS Catalog positive online preview1.
文(wén)件类型: .jpg 1a38d765c2c3f4b74e215e09af1a5536.jpg (388.49 KB)

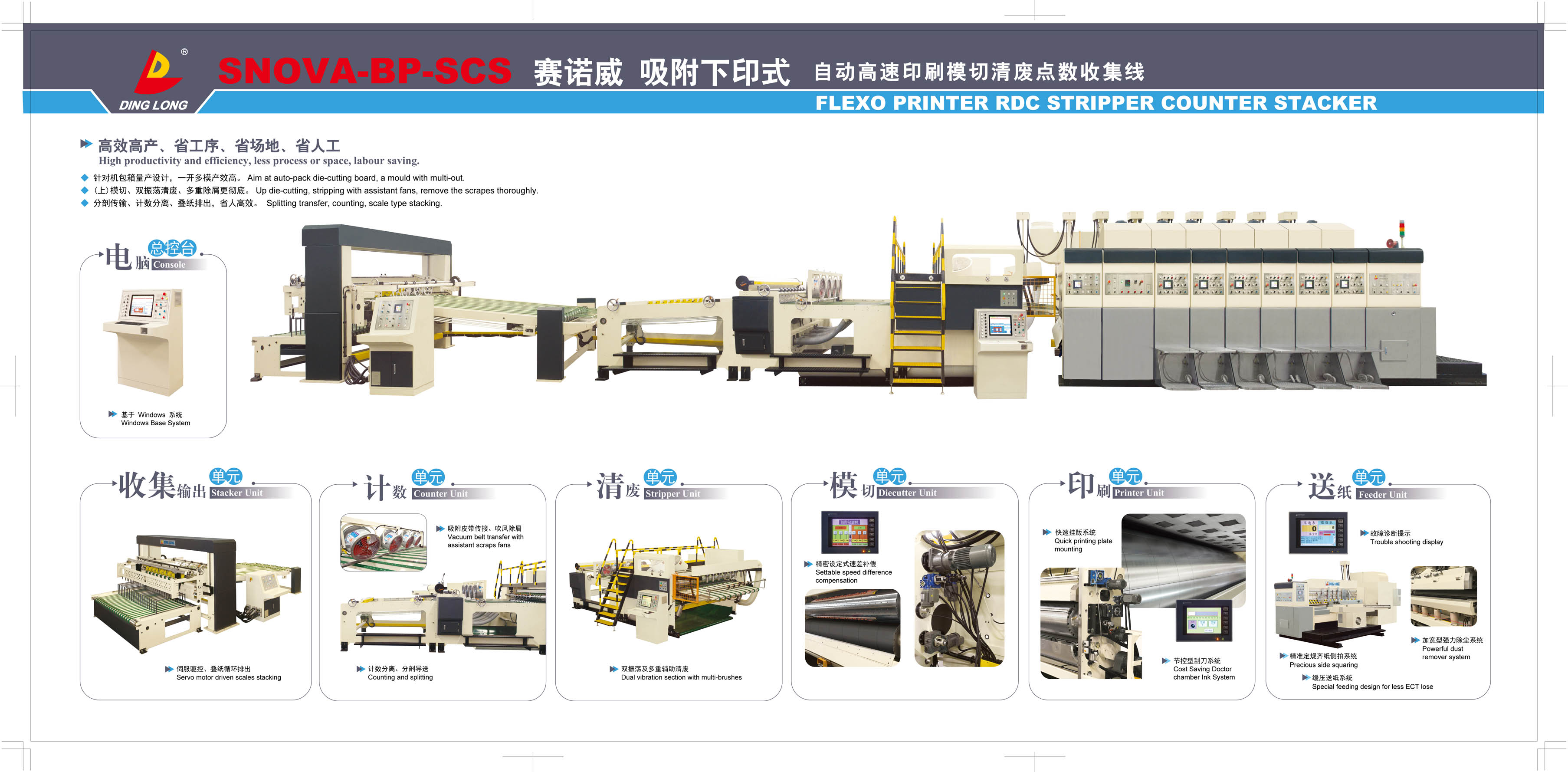

SNOVA-BP-SCS Catalog positive online preview2
文(wén)件类型: .jpg 5dab6467fc9f64980d2b959bd9c305cb.jpg (485.52 KB)
SNOVA-BP-SCS Click here to download the product catalog
文(wén)件类型: .zip static/file/文件类型 (725.50 KB)




 .
