FFG-SNOVA-TP AUTO FLEXO PRINTER FOLDER GLUER INLINE
FFG-SNOVA-TP AUTO FLEXO PRINTER FOLDER GLUER INLINE
  • Technical parameters
  • Product description
  • Download
  • Inquiry
  • Video

FFG-SNOVA-TP技(jì )术参数




Features:








◆  Integrated CNC control system, trouble-shooting, production

     management,remote maintenance.

◆  Quick printing plate mounting, motorized phase zero.

◆  Powerful dust remover, with anti-static bar, centralized dust

     collection,  less ECT loss.

◆  High precious transfer structure with ceramics vacuum

      transfer wheel, good registration accuracy.

◆  Creasing-slotting unit, prevent creasing line from bursting,

     better folding.

◆  Counter ejector with down stacking.

◆  Choose international brand electric components and

      transfer bearings,passCEcertification.






Main Console:














◆  Windows base CNC control system

◆  Remote maintenance.

◆  Huge order saving

◆  Trouble-shooting

◆  Optimized order memory

◆  Production and order management

◆  Available to connect with the customer internal ERP






Feeding Unit:






◆  Operation can be controlled by both main console and each

     unit touch screen.

◆  Lead-edge feeding, adjustable air control, precious registration

◆  Precious liner guideway lateral moving

◆  Motorized side squaring and paper support

◆  Powerful dust remover, with anti-staticbar, centralized dust

      collection,   less ECT loss.






Printing unit:







◆  Operation can be controlled by both main console and each

      unit touch screen.

◆  Top print, high precious transfer structure with ceramics

      vacuum transfer wheel,  good registration accuracy.

◆  Quick printing plate mounting, motorized phase zero.

◆  Ink saving circulate system, safety ink taking, short ink  alarm.

◆  Option: Double doctor blade system.







Creasing Unit :




◆  Operation can be controlled by both main console and each

     unit touch screen.

◆  Liner guideway lateral moving device with universal cross joints.

◆  Precious ball screw shaft, high rigid guiding cast, long life time.

◆  Big Pre-creaser, Pre-creaser, big creaser, prevent creasing line

     from bursting, better folding.

◆  Motorized gap control, large displacement of middle knife.






Slotting Unit :








◆  Operation can be controlled by both main console and each

     unit touch screen.

◆  Liner guideway lateral moving device with universal cross joints.

◆  Precious ball screw shaft, high rigid guiding cast, long life time.

◆  Motorized gap control, large displacement of middle knife.










Die-cutting Unit :









◆  Operation can be controlled by both main console and each unit

     touch screen.

◆  Die-cutting roll pneumatic self-locking device, smooth die-cutting.

◆  Sheet guide roll displacement motorized control, quick order change.

◆  C.U.E quick change die-cut anvil with grinding mechanism.

◆  Precious settable speed difference compensation, ensure

     die-cutting accuracy.













plicing section:









◆  Softener and rotary brush, fan assistant.

◆  Belt transfer











Folding gluing section :









◆  Constant temperature gluing system with big gluing wheel,

     reticulation gluing, motorized control glue wheel position.

◆  High rigid folding beam, ensure folding precision and high

     speed stability.

◆  Guide-way linear movement, high rigid beam fixed

     on the ground.

◆  Elastic wheel, motorized pneumatic adjust gap,

     smooth transfer.

◆  Folding finalize wheel correct fish tail, gap motorized control.

◆  Folding belt motorized driven, correct folding difference.











Count-Ejector unit :









◆  High speed down counting stacking, prevent box smearing.

◆  Side squiring, pneumatic plat push.

◆  Several servo driven, high efficiency counting stacking.

◆  Count-ejector unit lateral move motorized control.











Graphic( FFG-1224 ) :




FFG-SNOVA-TP Catalog positive online preview1
文(wén)件类型: .jpg 3f3b4e52b38002c8e1786f1af574f81c.jpg (1.72 MB)

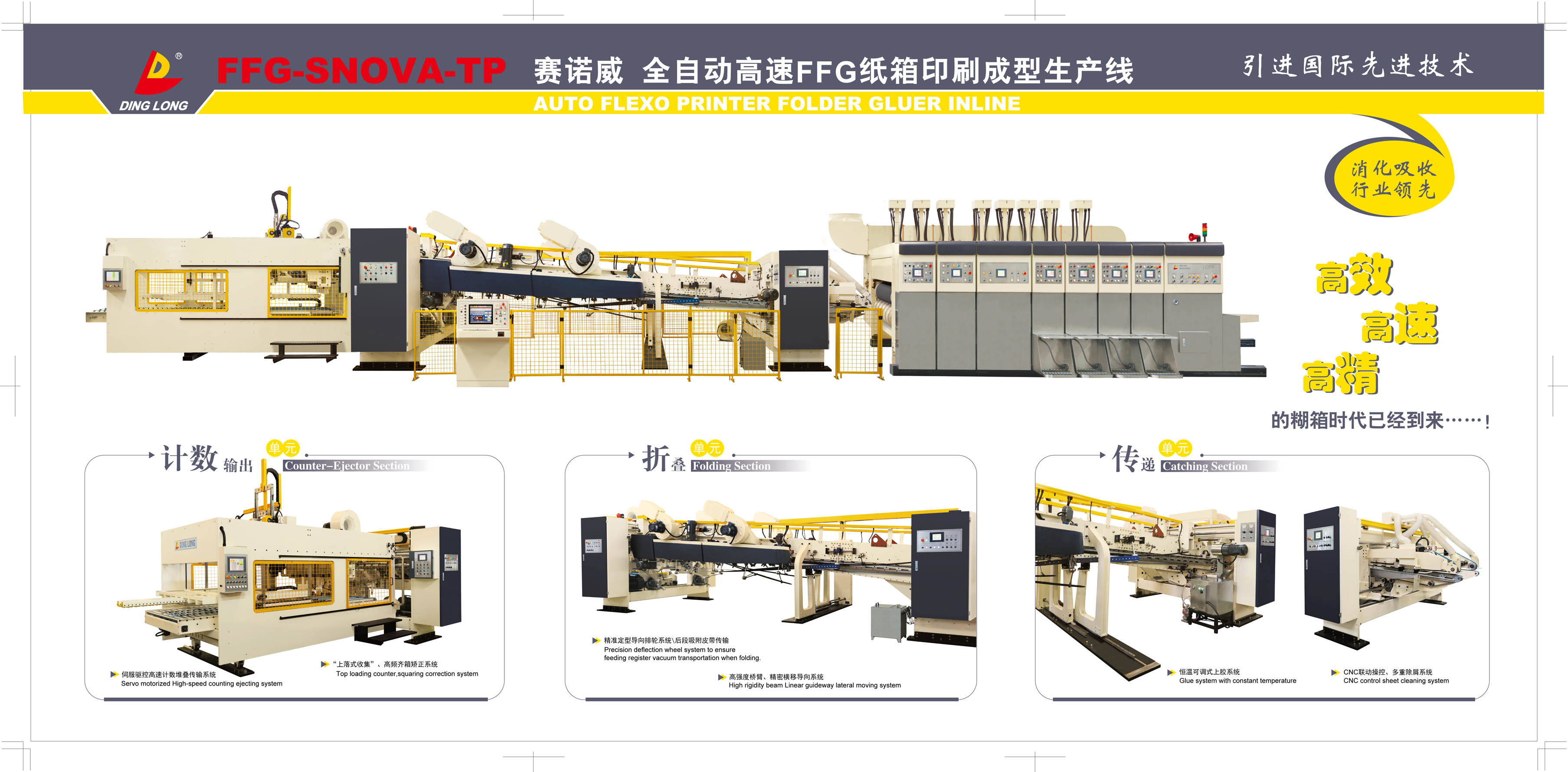

FFG-SNOVA-TP Catalog positive online preview2
文(wén)件类型: .jpg 67a2d52479301a0d51e46a5617486aa8.jpg (510.29 KB)



FFG-SNOVA-TP Click here to download the product catalog
文(wén)件类型: .zip static/file/文件类型 (1.62 MB)







 .
