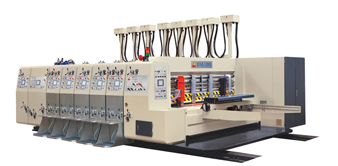

SNOVA-HP FLEXO PRINTER SLOTTER ROTARY DIE-CUTTER
SNOVA-HP FLEXO PRINTER SLOTTER ROTARY DIE-CUTTER
  • Technical parameters
  • Product description
  • Download
  • Inquiry
  • Video

SNOVA-HP技(jì )术参数




Features:








◆  Integrated CNC control system, troubleshooting, production

      management, remote maintenance.



◆  Quick printing plate mounting, motorized phase zero.



◆  Bridge platform lifting synchronous with printing gap adjustment.



◆  Choose international brand electric components and transfer

     bearings,  pass CE certification.






Main Console:














◆  Windows base CNC control system



◆  Remote maintenance.



◆  Huge order saving.



◆  Trouble-shooting.



◆  Optimized order memory.



◆  Production and order management.



◆  Available to connect with the customer internal ERP.






Feeding Unit:








◆  Operation can be controlled by both main console

       and each  unit touch screen.



◆  Lead-edge feeding, adjustable air control,                                                                                precious registration



◆  Precious liner guideway lateral moving



◆  Motorized side squaring and paper support



◆  Brush and dust catcher synchronic lifting.



◆  Double couple feeding roller device ,feeding rubber

     roller use  quick replace device








Printing unit:








◆  Operation can be controlled by both main console

      and each  unit touch screen.



◆  Sheet guide roller quick lateral moving.

◆  Bridge platform lifting synchronous with printing gap

     adjustment.



◆  Quick printing plate mounting, motorized phase zero.



◆  Ink saving circulate system, safety ink taking,

     short ink alarm.



◆  Option: Double doctor blade.






Slotting unit:








◆  Operation can be controlled by both main console and each

      unit touch screen.



◆  Liner guideway lateral moving device with universal cross joints.



◆  Pre-creaser, creaser slotting holder motorized gap control.



◆  Box height motorized control



◆  Large displacement of middle knife.






Die-cutting Unit:








◆  Up die-cutting, clean up scrap thoroughly, motorized

     die-cutting pressure adjustment.



◆  Die-cutting roll pneumatic self-locking device, smooth                                                               die-cutting.



◆  Sheet guide roll displacement motorized control,

     quick order change.



◆ C.U.E quick change die-cut anvil with grinding mechanism.

     Precious settable speed difference compensation, ensure

     die-cutting accuracy.

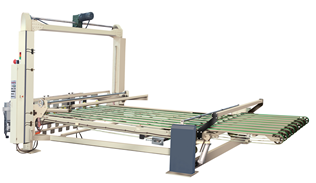

Stacking unit:








◆  Pneumatic lifting device for receiving arm , tightness

    degree adjustable

◆  Different speed section type stacking,  transfer belt

    inverter control



◆  Stacker platform lifting inverter control, protection device

      for lifting safety


◆  Side square. Pneumatic stacker lifting.






Graphic (HP) :




SNOVA-HP Catalog positive online preview1
文(wén)件类型: .jpg 057302e059a24c153768630388fe72b2.jpg (397.59 KB)
SNOVA-HP Catalog positive online preview2
文(wén)件类型: .jpg 429e847de28462e6e4e11c94396ff3ee.jpg (543.58 KB)
SNOVA-HP Click here to download the product catalog
文(wén)件类型: .zip static/file/文件类型 (795.79 KB)





 .
